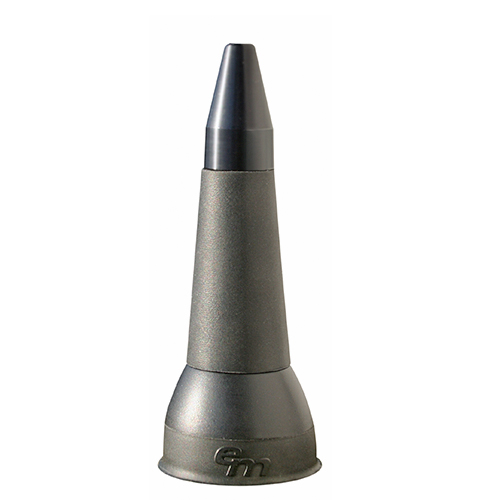

EM-M20007 LTE-Poly Pro
Flexible Poly-Band Antenna
for LTE NMO Applications
Features
- Capacitive Coupled Design Optimizes LTE Signal Performance while Maintaining Low-Profile Tapered Form Factor (Patent Pending)
- Flexible Elastomeric Polymer Housing Resists High Speed Impact and Damage from low hanging obstructions
- Dust and O-ring Seals for Reliable High Pressure Car Wash & Waterproof Performance
- Rugged "All Brass" Construction with Black Chrome Finish and Silver Plated Contact Maximizing Conductivity and System Reliability
- Broadband/Multi-band Performance to Comply Simultaneously with all LTE Operational Bands
Price: $54.00
Dealers - CALL for reseller pricing: 1-800-654-9550
Technical Specifications
Electrical
- Frequency Bands: 698-960 MHz / 1710-2500 MHz
- VSWR: 1.5:1 typical, 2:1 max
- Impedance: 50 Ohms
- Gain:
2 dBi (698-960 MHz) 3 dBi (1710-2150 MHz) 5 dBi (2150-2500 MHz) - Power Rating: 100 W
- Polarization: Linear, Vertical
- E-Plane: 70 Degrees / 35 Degrees, Nominal
- H-Plane: Omnidirectional
- Ground Plane: Required
Mechanical
- Height: 4.0 in. (102 mm)
- Diameter: 1.6 in. (40 mm)
- NMO Mount Type*: EM-M11001-195, EM-MTR11001-195
- Color: Black
- Radiator Material: Brass / Black Chrome Plating
- Radome Material: Elastomeric Polymer, Proprietary
- Operating Temperature: -40° to 85° C
- Corrosion: Salt Fog
- Humidity: 90%
Performance may vary when using other manufacturer's (not recommended) NMO type mounts.
